HM Series Survivor Life Jacket with Light

HM Series Survivor Life Jacket with Light

The HM Survivor Life Jacket has a flat front profile and a unique soft fleece collar making it comfortable to wear even in a hot cockpit. This compact lifejacket comes complete with a whistle and a crutch strap. When the lifejacket is deployed it exposes a lifting strap, retro reflective patches, and a water activated lifejacket light.

It can be worn by anyone over 40 kilos in weight.

The HM Survivor weighs only 750g and is manufactured in Sweden to the latest CEN standards. An outer cover protects the inflatable bladder which is inflated by a C02 cylinder when the red toggle is pulled. Also included is an oral top up valve.

SPECIFICATIONS:
HM Series Survivor Life Jacket with Light – manually operated 150N lifejacket suitable for all weather conditions that will turn the wearer over into the safe back position.

Approvals: Approved to EN 396.EN ISO 12402

DIMENSIONS PACKED:
Height 40cm
Width 30cm
Thickness 4cm
Weight 1030gm

STRUCTURE:
Outer Cover Fabric Heavy Duty Polyurethane coated Nylon
Colour Red or Black

INFLATABLE CHAMBER:
Fabric 210 Denier Nylon with a weldable Polyurethane Coating.
Colour International Orange
Visibility 6 x M.E.D/SOLAS Retro reflective patches total 300cm2.

CLOSURE:
Delrin zipper in black with two quick release openings to access the gas system and mouth inflation tube.

WAIST BELT:
Material 40mm Polypropylene Webbing.
Breaking Strain 400 kg
Colour Black

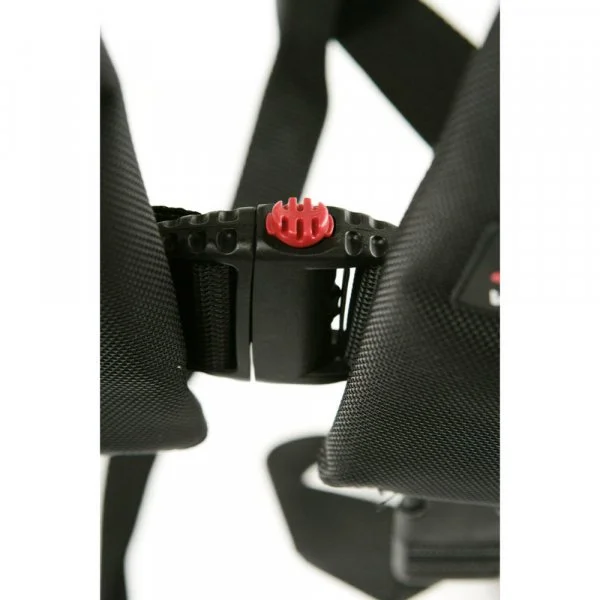

Front Fasteners Heavy Duty Delrin Buckle

CRUTCH STRAP:
Adjustable 30mm webbing Black

GENERAL SPECIFICATION:
Floatation Total inflated Buoyancy 165N
Inflation System via Mouth inflation/deflation tube or United Moulders Manual inflator.
Gas Cylinder 33gm
Whistle Orange pea-less marine grade M.E.D/SOLAS approved
Lifting Becket 25mm Nylon Webbing Integrated into lifejacket with a loop handle braided yellow on black printed with lift.

ACCESSORIES:
Lifejacket Light – comes with emergency light, M.E.D/SOLAS approved. The safety light is activated when submerged in water, or manually by pressing the button.
Spray Hood
– Spray hood part no 2516 approved to EN394
– Fitted with 2 x retro reflective patches and stay.
– High Viz yellow with transparent PVC window.

SPARE PARTS:
Cylinder Kit Part no 2433 33gm CO2 cylinder.
Indicator Kit Part no 2404

INSPECTION INTERVALS:
– Inspection interval minimum annually
– Life expectancy 10 Years

SAFETY DATA:
– Each lifejacket contains a cylinder containing 33 grams of compressed Carbon Dioxide CO2.
– Hazchem Code 2XE. Pressure 56Bar.
– Hazardous UN 3072 class 9.
